Product Description
Fiber Handheld Laser Marking Machine with small size is very convinient to use . It not only can be used as a common marking machine also can be used with hand-held laser head .Laser marking machine can mark on any part of large machinery parts and components,it solves the difficulty of large components marking very well. Portable marking machine has lots of advantage :high quality beam,high efficiency,long lifetime,maintenance-free,consumable free, Low power consumption,almost has no running cost.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.
Laser marking machine Advantages:
1.Compact ,mini type .Handy, maintenance-free;
2. 10W/20W/30W Raycus fiber laser/IPG laser, excellent beam quality, high stability ;
3.Germany SCANLAB technology high speed digital scanner, high precision ;
4.User-friendly interface programme, multi-function;
5.Double red pointer positioning system;
6.Qualified integrated units insure reliability of the whole system .
Parameter
Model Number | FZ- Handheld F10W/20W/30W/50W |
Weight | Handheld 5KG/Power Box part 25KG |
Laser wavelength | 1064nm |
Laser power | 10W or 20W or 30W or 50W optional |
Laser Type | Fiber laser pulsed or continuous |
Marking depth | ≤0. 5mm as the material may |
Marking line speed | ≤7000mm / s |
Minimum characters | 0.1mm |
The minimum line width | 0.01mm |
Marking area | Standard 110mmX110mm Optional 200mm*200mm/300mm*300mm |
Operating Life | laser Run> 100,000 hours |
Dimensions | 700mm X 280 mm X580mm |
Cooling system | Air cooling |
Operating System | Windows |
Environment | 10 ° C-45 ° C, relative humidity 5%-95% |
Power output | 220V-50HZ(single phase) or 110V-60HZ(single phase) |
Advantages
Handheld laser marking machine easy to move ,can marking unmoveable objects.
High precision with repetition as tiny as 0.2mm.
Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.
Fast marking speed.
Simple and convenient operation. Easy to learn and handle.
Create intelligent designs.
Stable structure, little vibration during work.
For different marking requirement, we have four type for you.
Adopting Air Cooling.
Run without maintenance.
No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
Low power consumption: low cost, only 0.5kw per hour.
Perfect performance, 24 hours continuous working ability.
Long working life.
For long-term consideration, the cost is much lower than other laser marking machine

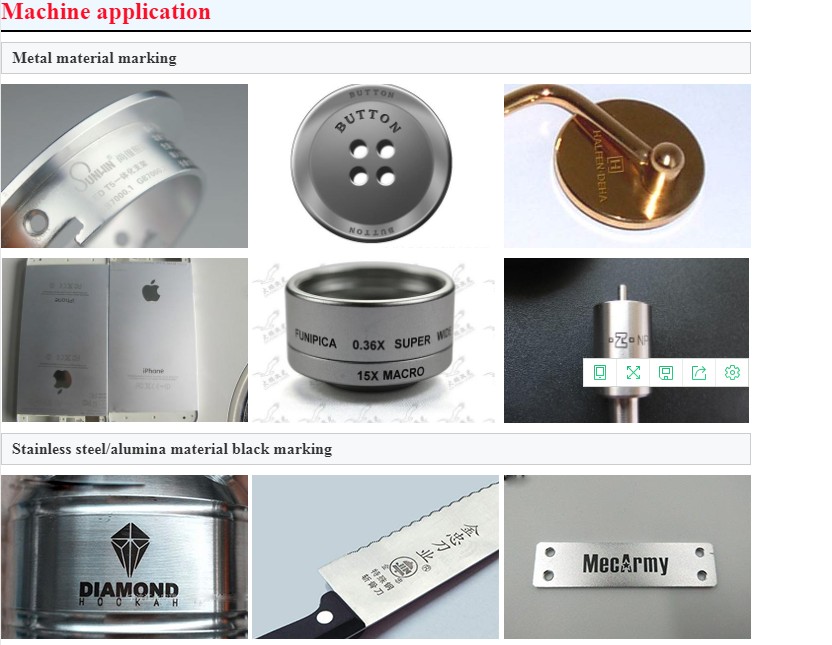

It can mark on the surface of many metal and non-metallic ,widely used in the marking of below area :industrial bearings,gear,various automobile components,hardware tools,aerospace components,IC chip,computer accessories,watch,electronic and communication products,wire and cable,food package,jewelry etc .
Packaging & Shipping
Packaging Details:Plywood Cases
Delivery Details:5-7 working days
The advantages of Plywood Case Package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the
market of choice for the goods of high-weight packaging
Secondly, the board area is big, the soil structure is good,and operational process is simple,
So it is better in leakproofness and waterproof.
Thirdly , when importing the plywood case is with fumigation-free , the procedure is
