Sample Show

Model | FT610 - 12.7 FT620-25.4 / DH12(cartridge) |
Dimension | 130*128*242mm |
Net weight | 1.10kg |
Printing direction | Adjusted within 360 degree, meet all kinds of production needs |
Character type | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English |
Function | Handheld print and On line printing(Need Sensor extra) |
Printing pictures | Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk |
Printing accuracy | 300DPI |
Printing height | 1.5mm-12.7mm |
Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) |
Print serial number | 0~9 |
Automatic print | date, time, batch number shift and serial number, etc |
Storage | external USB save the information transfer in a free way |
Message length | 2000 characters for each message, no limitation on length |
Printing speed | 70m/min |

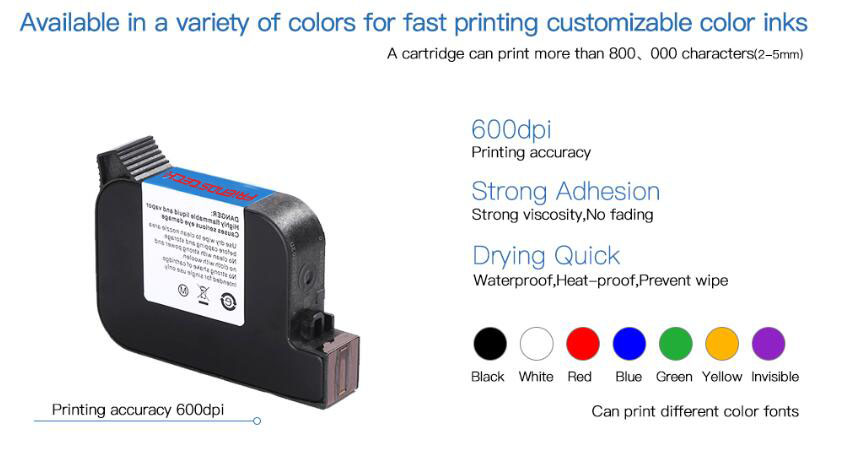

Ink type | Quick-dry environmental ink, water-based ink and oily ink |
Ink color | black, white, red, blue, yellow, green, invisible |
Ink volume | 42ml(usually can print 800,000 characters) |

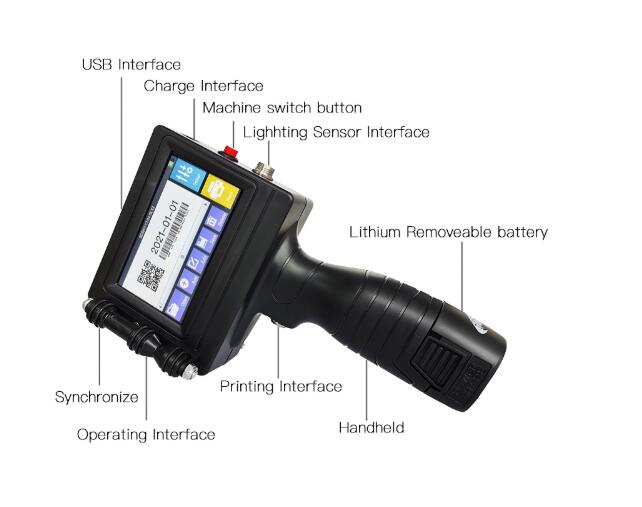

External interface | USB,Photoelectric interface, can directly insert a USB disk to upload information |
Voltage | DC16.8V lithium battery, print continuously more than 10 hours and 20 hours standby |
Control panel | touch-screen (can connect wireless mouse) |
Power consumption | the average power consumption is lower than 5W |
Working environment | Temperature:0 - 38 degree; Humidity: 10% - 80% |
Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel |

![]()










Order placing process and Payment method and Transportation

FAQ
Q 1, Can this printer print my product?
We have water-based ink cartridge and quick dry ink cartridge to suit different materials. Most of
the products can be printed with EXP date, batch code, bar code, QR code, serial number, logo and
other printing information.
Q 2, Can the mark be erased?
No, if you do not scrape with hard tool, it can not be erased.
Q 3, How long will it take for the ink to become dry?
3-5 seconds.
Q 4, Are you a factory or a trading company?
We have our own factory and we provide perfect OEM and after sale service.
Q 5, How can I know your machine works well?
Before delivery, we have tested every machine and adjusted it to the best condition. If you have
special production condition, we could also adjust the machine for you.
Q 6, Do I only use the supplies of the machines from your factory?
Not necessarily. We offer HP original import ink supplies, but the machine could suit for most
cartridges.You could choose other as your wish.
Q 7, Can I choose trade-assurance for payment?
Of course, we welcome order from trade assurance because the free service provided by Alibaba
guarantees the safety of buyer's money and seller's prompt delivery, that is the safety of money and
goods for both of us.
