Sample Show

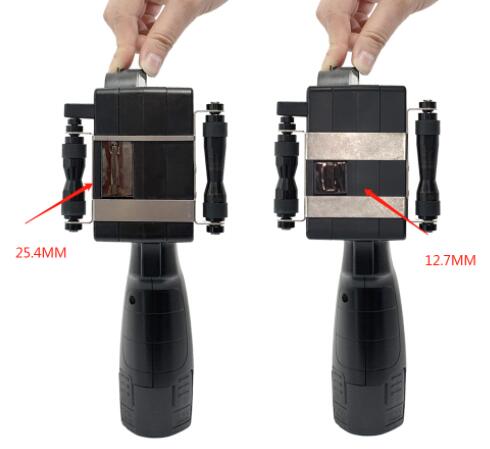

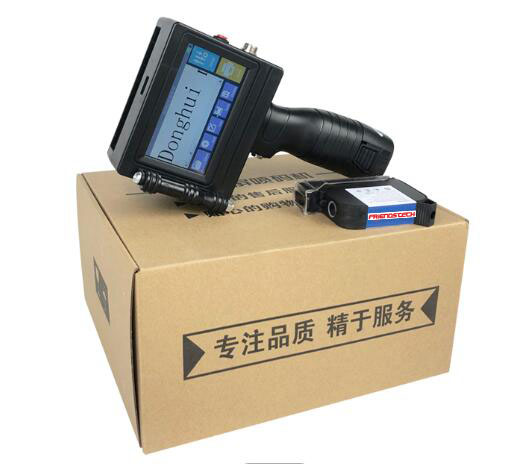

Model	FT610 - 12.7    FT620-25.4 / DH12(cartridge))
Dimension	130*128*242mm
Net weight	1.10kg
Printing direction	Adjusted within 360 degree, meet all kinds of production needs
Character type	high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English

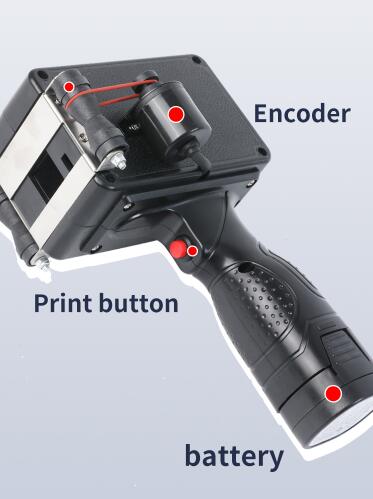

Function	Handheld print and On line printing(Need Sensor extra)
Printing pictures	Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk
Printing accuracy	300DPI

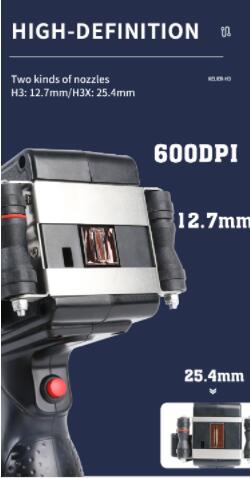

Printing height	1.5mm-12.7mm
Printing distance	1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)
Print serial number	0~9
Automatic print	date, time, batch number shift and serial number, etc
Storage	external USB save the information transfer in a free way
Message length	2000 characters for each message, no limitation on length
Printing speed	70m/min

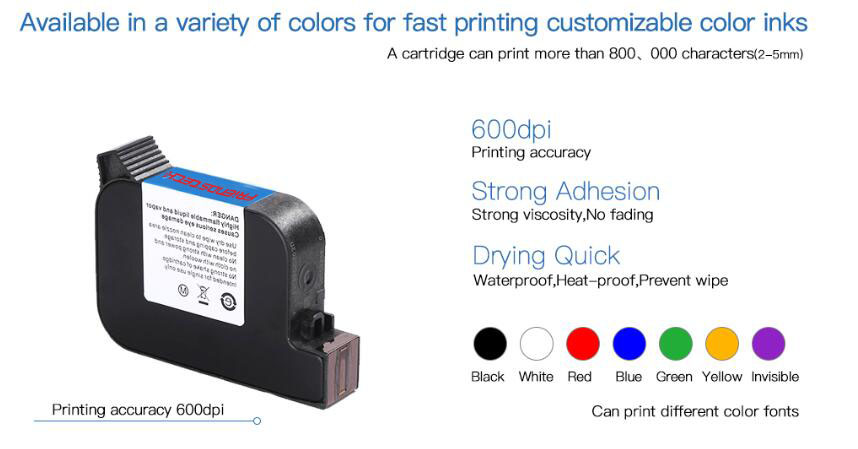

Ink type	Quick-dry environmental ink, water-based ink and oily ink
Ink color	black, white, red, blue, yellow, green, invisible
Ink volume	42ml(usually can print 800,000 characters)

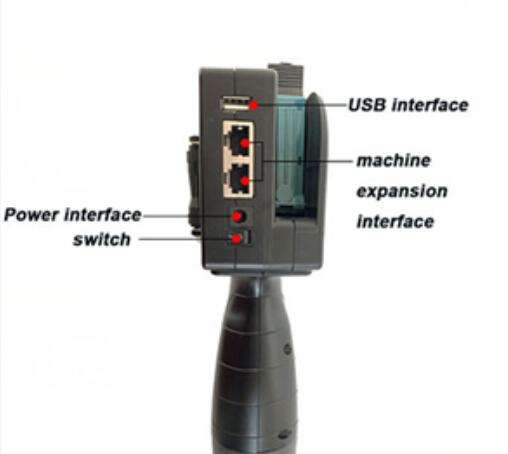

External interface	USB,Photoelectric interface, can directly insert a USB disk to upload information

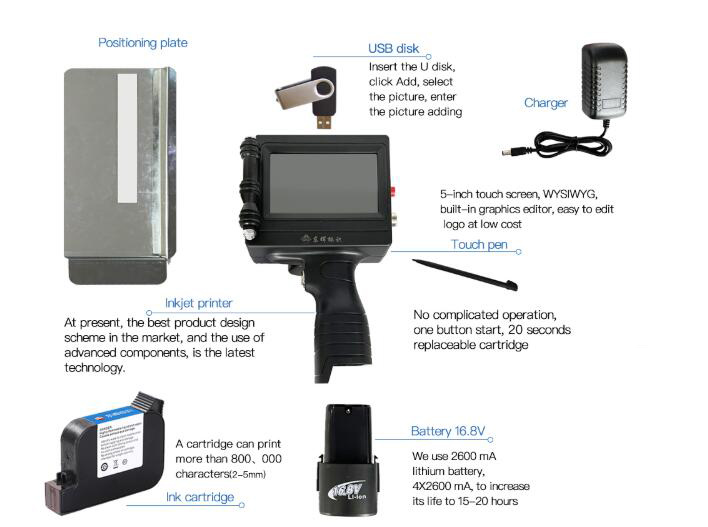

Voltage	DC16.8V lithium battery, print continuously more than 10 hours and 20 hours standby
Control panel	touch-screen (can connect wireless mouse)
Power consumption	the average power consumption is lower than 5W
Working environment	Temperature:0 - 38 degree; Humidity: 10% - 80%
Printing material	board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel



 Order placing process and Payment method and Transportation

FAQ

   Q 1, Can this printer print my product?

   We have water-based ink cartridge and quick dry ink cartridge to suit different materials. Most of

   the products can be printed with EXP date, batch code, bar code, QR code, serial number, logo and

   other printing information.

   Q 2, Can the mark be erased?

  No, if you do not scrape with hard tool, it can not be erased.

  Q 3, How long will it take for the ink to become dry?

   3-5 seconds.

   Q 4, Are you a factory or a trading company?

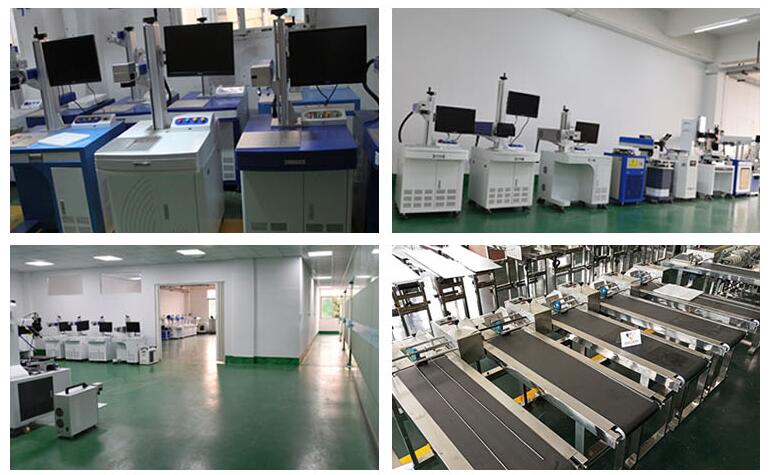

   We have our own factory and we provide perfect OEM and after sale service.

   Q 5, How can I know your machine works well?

   Before delivery, we have tested every machine and adjusted it to the best condition. If you have

   special production condition, we could also adjust the machine for you.

   Q 6, Do I only use the supplies of the machines from your factory?

   Not necessarily. We offer HP original import ink supplies, but the machine could suit for most

   cartridges.You could choose other as your wish.

   Q 7, Can I choose trade-assurance for payment?

   Of course, we welcome order from trade assurance because the free service provided by Alibaba

   guarantees the safety of buyer's money and seller's prompt delivery, that is the safety of money and

    goods for both of us.

---
